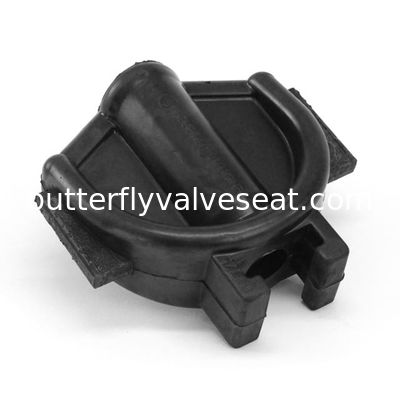

EPDM / NBR Rubber Wedge Flapper Valve Seat , Resilient Seated Gate Butterfly Valve Seat

EPDM / NBR Rubber Wedge Flapper Valve Seat , Resilient Seated Gate Butterfly Valve Seat

  • EPDM / NBR Rubber Wedge Flapper Valve Seat , Resilient Seated Gate Butterfly Valve Seat
  • EPDM / NBR Rubber Wedge Flapper Valve Seat , Resilient Seated Gate Butterfly Valve Seat
  • EPDM / NBR Rubber Wedge Flapper Valve Seat , Resilient Seated Gate Butterfly Valve Seat
EPDM / NBR Rubber Wedge Flapper Valve Seat , Resilient Seated Gate Butterfly Valve Seat
Product Details:
Place of Origin: Suzhou, China
Brand Name: Customized
Certification: KTW W270 EN681-1,ACS,NSF61/372;WRAS,EC1935;FDA,EC1935;REACH,ROHS
Model Number: 928015C5
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: Negotiation
Packaging Details: plywood case size 115*71*61cm
Delivery Time: 10-15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 50,000 pieces / month
Contact Now
Detailed Product Description
Color: Black Material: EPDM/ NBR/ NR/ CR/ SR
Temperature: -35℃~100℃ Product Name: Soft Gate Valve Seat
Suitable Media: Water, Potable Water, Drinking Water, Wastewater... Hardness: 65±3 °C
Highlight:

fkm seat

,

flapper valve seat

EPDM/ NBR rubber wedge for resilient seated gate valve 2''-24''



Hardness:65±3
Size:2''-24''
Applied Medium:good chemical stability and leakproofness,corrosion resistance, high-lubricating,good electric insulation and ageing resistance
Temperature:-35℃~100℃
Certificate: KTW W270 EN681-1,ACS,NSF61/372;WRAS,EC1935;FDA,EC1935;REACH,ROHS



Description:

1. Rubber and framework material are firmly bonded.
2. Excellent rubber elasticity and compression set.
3. Stable seat size and small torque, excellent sealing and wear resistance property.
4. Rubber materials adopt international brands with stable performance.
5. Material: CR, NR, SBR, NBR, EPDM, PTFE, Silicone, etc.
6. Certification: NSF,SGS,KTW,FDA,ISO9001,ROHS,
7. High/low temperature resistance, oil and fuel resistance, good air tightness etc.
8. Process and packing is according to your requirements.
9. Application: Fluid control,electronic, household appliance, automotive, medical equipment industry, industrial machine& components,etc



R&D Capabilities:
We have our own self-developed formula base on clients' different application.
We have independent physics laboratory and high-standard quality inspection.
We have customer service location in America to help promote global business.
Implement project management system to ensure smooth transfer and constant improvements from project lead-in to mass production .

Our experts team can provide all-round supports to products and mold design, material formula and process optimization.

Decades of production experience and professional technology skills are able to guarantee the superior quality.



Material Quick Selection Table:

Material Suitable Temp. Characteristics
NBR

-35℃~100℃

Instant -40℃~125℃

Nitrile rubber has good self-expanding properties, abrasion resistance and hydrocarbon-resistant properties. It can be used as a general material for water, vacuum, acid, salt, alkali, grease, oil, butter, hydraulic oil, glycol, etc. Can not be used in places such as acetone, ketone, nitrate, and fluorinated hydrocarbons.
EPDM

-40℃~135℃

Instant -50℃~150℃

Ethylene-propylene rubber is a good general-purpose synthetic rubber that can be used in hot water systems, beverages, dairy products, ketones, alcohols, nitrates, and glycerin, but not in hydrocarbon-based oils, inorganics, or solvents.



CR

-35℃~100℃

Instant -40℃~125℃

Neoprene is used in media such as acids, oils, fats, butters and solvents and has good resistance to attack.
FKM

-20℃~180℃



Fluororubber is a good hydrocarbon-resistant base oil, fluorinated hydrocarbon rubber for oily gas and other petroleum products. It is suitable for water, oil, air, acid and other media, but it can not be used for steam, hot water or thicker than 82 °C. Alkali system.
SR -70℃~200℃ Silicone rubber is resistant to high temperature, low temperature and stable chemical properties, and is widely used in industries such as strong acid, weak alkali and food.

Special materials: carboxylated nitrile rubber, hydrogenated nitrile rubber, corrosion-resistant ethylene-propylene rubber, steam-resistant fluoroelastomer, chlorosulfonated polyethylene
