Professional Global Rubber Parts Supporting Supplier.
 |
| Place of Origin: | Suzhou, China |
| Brand Name: | Customized |
| Certification: | KTW W270 EN681-1,ACS,NSF61/372;WRAS,EC1935;FDA,EC1935;REACH,ROHS |
| Model Number: | 928015C5 |
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | Negotiation |
| Packaging Details: | plywood case size 115*71*61cm |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 50,000 pieces / month |
| Color: | Black | Material: | EPDM/ NBR/ NR/ CR/ SR |
|---|---|---|---|
| Product Name: | Rubber Valve Seat | Suitable Media: | Water, Potable Water, Drinking Water, Wastewater... |
| Hardness: | 65±3 °C | Advantage: | Zero Leakage, Low Operation Torque |
| High Light: | fkm seat,flapper valve seat,high reliability butterfly valve seat |
||

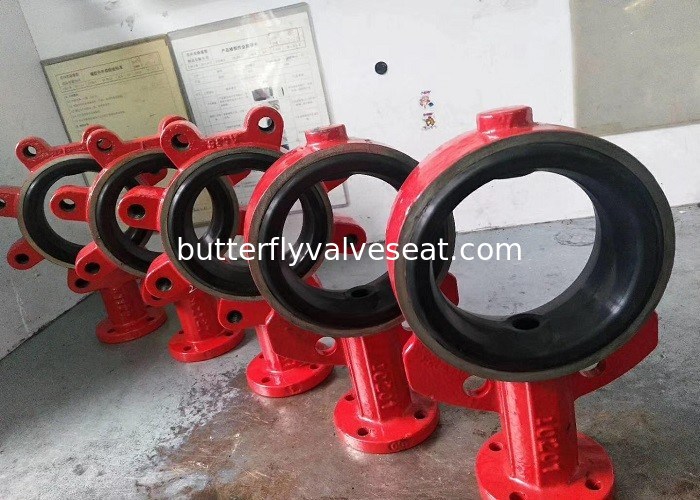

Vulcanized butterfly valve seat with Good elasticity and High reliability
Advntages of the vulcanized rubber valve seat:
Because of using of symmetrical channel structure, and rubber valve seat is made of high precision vulcanization, so whatever the direction of the medium, the seal can effectively cut off the flow from the pressure surface. SML rubber lined butterfly valve seats maintain superior sealing performance under high pressure.
The upper and lower valve shaft hole of the valve seat have double o - ring sealing ring structure, together with the up and down two sealing platform, ensuring that the butterfly valve shaft leakage won’t be happened during opening and closing. So whatever changes internally in the pipeline, the leakage won’t be happened.
Benefits of Butterfly Valve seats from SML
| All raw materials are sourced from international brands with stable property |
| Outstanding operational performance |
| Good elasticity |
| High reliability |
| Stable dimensions |
| Extended service life |
| Low operational torque values |
| Good wearing resistance |
| Excellent sealing performance |
| Excellent compressive properties |
| Wide temperative range |
| Customized to specific applications |
Material Quick Selection Table:
| Material | Suitable Temp. | Characteristics |
| NBR |
-35℃~100℃ Instant -40℃~125℃ |
Nitrile rubber has good self-expanding properties, abrasion resistance and hydrocarbon-resistant properties. It can be used as a general material for water, vacuum, acid, salt, alkali, grease, oil, butter, hydraulic oil, glycol, etc. Can not be used in places such as acetone, ketone, nitrate, and fluorinated hydrocarbons. |
| EPDM |
-40℃~135℃ Instant -50℃~150℃ |
Ethylene-propylene rubber is a good general-purpose synthetic rubber that can be used in hot water systems, beverages, dairy products, ketones, alcohols, nitrates, and glycerin, but not in hydrocarbon-based oils, inorganics, or solvents.
|
| CR |
-35℃~100℃ Instant -40℃~125℃ |
Neoprene is used in media such as acids, oils, fats, butters and solvents and has good resistance to attack. |
| FKM |
-20℃~180℃
|
Fluororubber is a good hydrocarbon-resistant base oil, fluorinated hydrocarbon rubber for oily gas and other petroleum products. It is suitable for water, oil, air, acid and other media, but it can not be used for steam, hot water or thicker than 82 °C. Alkali system. |
| SR | -70℃~200℃ | Silicone rubber is resistant to high temperature, low temperature and stable chemical properties, and is widely used in industries such as strong acid, weak alkali and food. |
Special materials: carboxylated nitrile rubber, hydrogenated nitrile rubber, corrosion-resistant ethylene-propylene rubber, steam-resistant fluoroelastomer, chlorosulfonated polyethylene |
||
Workshop Production Process Flow
Raw material storage → Incoming inspection → Batching → Mixing → Physical Property Test
→ Place → Clipping → Molding → Trim and Check → Packaging and shipping
