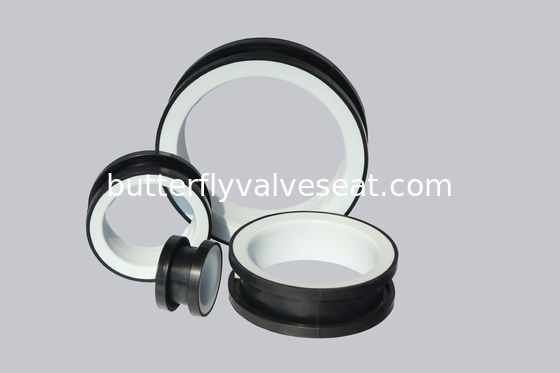

PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size

PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size

  • PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size
  • PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size
  • PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size
PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size
Product Details:
Place of Origin: Suzhou, China
Brand Name: SML
Certification: ISO, WRAS, ACS, FDA, DVGW, NSF, SGS
Model Number: 928125Y2
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: Negotiation
Packaging Details: plywood case
Delivery Time: 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 5000PCS/ Month
Contact Now
Detailed Product Description
Material: PTFE+EPDM Temperature: -40℃~135℃
Media: Water,Oil,Gas,Base,oil And Acid Port Size: DN50-DN600
Application: Butterfly Valve Product Name: Wafer Type Centerline Soft Sealing Butterfly Valve,pneumatic Wafer Butterfly Valve
Color: Customer's Request Connection: Wafer,Flange Ends
Standard: ANSI BS DIN JIS,DIN,ANSI,JIS,BS Seat: EPDM/NBR/EPR/PTFE,NBR,Rubber,PTFE/NBR/EPDM/FKM/FPM
Valve Type: Butterfly Valve,Lug Type Double Half Shaft Butterfly Valve Without Pin
High Light:

epdm seat butterfly valve

,

teflon valve seat

,

ptfe combined epdm valve seat

PTFE combined EPDM valve seat for centerline butterfly valve 2''-24''



1. A butterfly valve seat is a type of flow control devise, typically used to regulate o fluid flowing through a section of pipe.

2. Rubber Valve seats are used in Butterfly valves for sealing purpose. The material of the seat can be made from many different elastomers or polymers, including PTFE, NBR, EPDM, FKM/FPM, etc.

3. This PTFE&EPDM valve seat is used for butterfly valve seat with excellent non-stick characteristics, chemical and corrosion resistance performance.Our advantages:

» Outstanding operational performance
» High reliability
» Low operational torque values
» Excellent sealing performance
» Wide range of applications
» Wide temperative range
» Customized to specific applications

4. Size range: 2''-24''

5. OEM accepted





Rubber seat Dimensions (Unit:lnch/mm)

Inch 1.5“ 2“ 2.5“ 3“ 4“ 5“ 6“ 8“ 10“ 12“ 14“ 16“ 18“ 20“ 24“ 28“ 32“ 36“ 40“
DN 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700 800 900 1000




Material Quick Selection Table:

Material Suitable Temp. Characteristics
NBR

-35℃~100℃

Instant -40℃~125℃

Nitrile rubber has good self-expanding properties, abrasion resistance and hydrocarbon-resistant properties. It can be used as a general material for water, vacuum, acid, salt, alkali, grease, oil, butter, hydraulic oil, glycol, etc. Can not be used in places such as acetone, ketone, nitrate, and fluorinated hydrocarbons.
EPDM

-40℃~135℃

Instant -50℃~150℃

Ethylene-propylene rubber is a good general-purpose synthetic rubber that can be used in hot water systems, beverages, dairy products, ketones, alcohols, nitrates, and glycerin, but not in hydrocarbon-based oils, inorganics, or solvents.



CR

-35℃~100℃

Instant -40℃~125℃

Neoprene is used in media such as acids, oils, fats, butters and solvents and has good resistance to attack.
FKM

-20℃~180℃



Fluororubber is a good hydrocarbon-resistant base oil, fluorinated hydrocarbon rubber for oily gas and other petroleum products. It is suitable for water, oil, air, acid and other media, but it can not be used for steam, hot water or thicker than 82 °C. Alkali system.
SR -70℃~200℃ Silicone rubber is resistant to high temperature, low temperature and stable chemical properties, and is widely used in industries such as strong acid, weak alkali and food.

Special materials: carboxylated nitrile rubber, hydrogenated nitrile rubber, corrosion-resistant ethylene-propylene rubber, steam-resistant fluoroelastomer, chlorosulfonated polyethylene




PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size 0PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size 1PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size 2PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size 3PTFE Combined EPDM Valve Seat For Centerline Butterfly Valve 2 '' - 24 '' Size 4
