|Place of Origin:||Suzhou, China|
|Certification:||ISO, WRAS, ACS, FDA, DVGW, NSF, SGS|
|Minimum Order Quantity:||10 pieces|
|Packaging Details:||plywood case, size 115*71*61cm|
|Delivery Time:||10-15 days|
|Payment Terms:||T/T, L/C, D/A, D/P, Western Union|
|Supply Ability:||30,000 PCS / month|
|Material:||EPDM||Usage:||Butterfly Valve Seat|
|Type:||Hub Seal||Suitable Media:||Water, Drinking Water, Potable Water...|
teflon valve seat,
customized color epdm valve seat

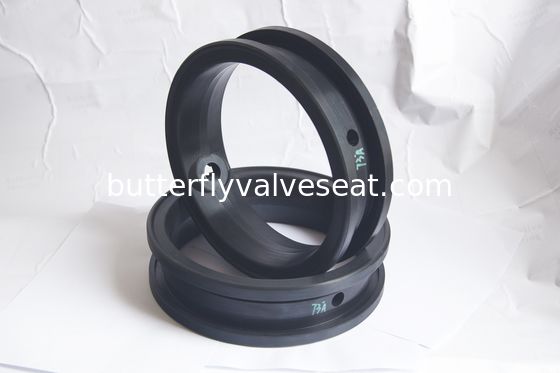

Customized EPDM valve seat for wafer / lug / flanged butterfly valve 2''-24''
1. A butterfly valve seat is a type of flow control devise, typically used to regulate o fluid flowing through a section of pipe.
2. Rubber Valve seats are used in Butterfly valves for sealing purpose. The material of the seat can be made from many different elastomers or polymers, including PTFE, NBR, EPDM, VITON, etc.
3. Our advantages:
» Outstanding operational performance
» High reliability
» Low operational torque values
» Excellent sealing performance
» Wide range of applications
» Wide temperative range
» Customized to specific applications
5. Temperature Range: -20°C to 250°C
6. Working pressure: PN10, PN16, PN25, ANSI
7. OEM accepted
8. Rubber seat Dimensions (Unit:lnch/mm)
1.Rubber and reinforcing material firmly bonded.
2.Rubber elasticity and excellent compression.
3.Stable seat dimensions, low torque, excellent sealing performance, wear resistance.
4.All internationally renowned brands of the raw materials with stable performance.
Material quick selection
|Nitrile rubber has good self-expanding properties, abrasion resistance and hydrocarbon-resistant properties. It can be used as a general material for water, vacuum, acid, salt, alkali, grease, oil, butter, hydraulic oil, glycol, etc. Can not be used in places such as acetone, ketone, nitrate, and fluorinated hydrocarbons.|
Ethylene-propylene rubber is a good general-purpose synthetic rubber that can be used in hot water systems, beverages, dairy products, ketones, alcohols, nitrates, and glycerin, but not in hydrocarbon-based oils, inorganics, or solvents.
|Neoprene is used in media such as acids, oils, fats, butters and solvents and has good resistance to attack.|
|Fluororubber is a good hydrocarbon-resistant base oil, fluorinated hydrocarbon rubber for oily gas and other petroleum products. It is suitable for water, oil, air, acid and other media, but it can not be used for steam, hot water or thicker than 82 °C. Alkali system.|
|SR||-70℃~200℃||Silicone rubber is resistant to high temperature, low temperature and stable chemical properties, and is widely used in industries such as strong acid, weak alkali and food.|
Special materials: carboxylated nitrile rubber, hydrogenated nitrile rubber, corrosion-resistant ethylene-propylene rubber, steam-resistant fluoroelastomer, chlorosulfonated polyethylene
